Service manual for Epson XP series printers: XP-100/101/102/103/104, XP-200/201/202/203/204/205/207, XP-211, XP-212, XP-214, XP-215, XP-225, XP-300, XP-302, XP-303, XP-305, XP-306, XP-310, XP-312, XP-313, XP-315, XP-322, XP-323, XP-325, XP-400/401/402/403/405/406

Service manual for Epson XP series printers: XP-100/101/102/103/104, XP-200/201/202/203/204/205/207, XP-211, XP-212, XP-214, XP-215, XP-225, XP-300, XP-302, XP-303, XP-305, XP-306, XP-310, XP-312, XP-313, XP-315, XP-322, XP-323, XP-325, XP-400/401/402/403/405/406

18,00 $

The Epson XP series service manual provides detailed instructions on servicing and repairing various models such as the XP-100/101/102/103/104, XP-200/201/202/203/204/205/207, XP-211, XP-212, XP-214, XP-215, XP-225, XP-300, XP-302, XP-303, XP-305, XP-306, XP-310, XP-312, XP-313, XP-315, XP-322, XP-323, XP-325, XP-400/401/402/403/405/406. This manual is a valuable resource for technicians and users looking to troubleshoot and maintain their Epson printers.
DIGITAL DELIVERY ONLY (via email or Chat message).
Delivery time of 30 minutes, in some cases in 8 hours!

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,

Description

Description

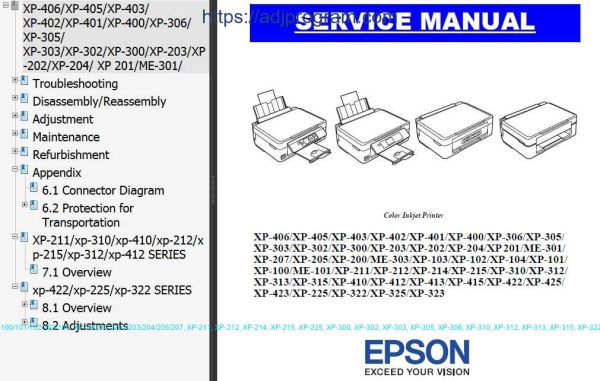

This Epson XP-100, XP-101, XP-102, XP-103, XP-104, XP-200, XP-201, XP-202, XP-203, XP-204, XP-205, XP-207, XP-211, XP-212, XP-214, XP-215, XP-225, XP-300, XP-302, XP-303, XP-305, XP-306, XP-310, XP-312, XP-313, XP-315, XP-322, XP-323, XP-325, XP-400, XP-401, XP-402, XP-403, XP-405, XP-406, XP-410, XP-412, XP-413, XP-415, XP-423, XP-425, ME-101, ME-301, ME-303 service manual describes the basic functions, theory of electrical and mechanical operations, maintenance procedures, and repair of the printer.

About This Manual

This manual consists of the following chapters and is intended for repair service personnel, providing necessary information for correctly maintaining and servicing the product.

  • Chapter 1. Troubleshooting

    • Describes step-by-step procedures for troubleshooting.

  • Chapter 2. Disassembly/Reassembly

    • Describes procedures for disassembling/reassembling the main parts/units of the product and provides standard operating time for servicing the product.

  • Chapter 3. Adjustment

    • Describes necessary adjustments for servicing the product.

  • Chapter 4. Maintenance

    • Describes maintenance items and procedures for servicing the product.

  • Chapter 5. Appendix

    • Provides additional information for reference:

    • Connector diagram
    • Transportation protection

Format

High-resolution PDF document.
Zip file: 36,728 kB

Adjustment Program Epson

The Adjustment Program Epson is an essential tool for the maintenance of Epson printers. With this software, you can:

  • Reset Ink Pads: Reset the ink pad counter to the end of its lifespan.
  • Head Cleaning: Perform deep cleanings to improve print quality.
  • Head Alignment: Ensure precise and non-displaced printing.
  • Initialization: Reset the printer to its factory state.
  • Print Tests: Diagnose print quality issues.
  • Sensor Adjustment: Calibrate sensors for proper operation.
  • Firmware Update: Keep the printer up to date with the latest improvements.

These functions help extend the printer’s lifespan, optimize print quality, and save on maintenance costs.

Order and Download Online

Binance, all debit and credit cards accepted.

Contact Support

Telegram: https://t.me/nguyendangmien
Facebook: https://www.facebook.com/nguyendangmien
Whatsapp: https://wa.me/+84915589236
